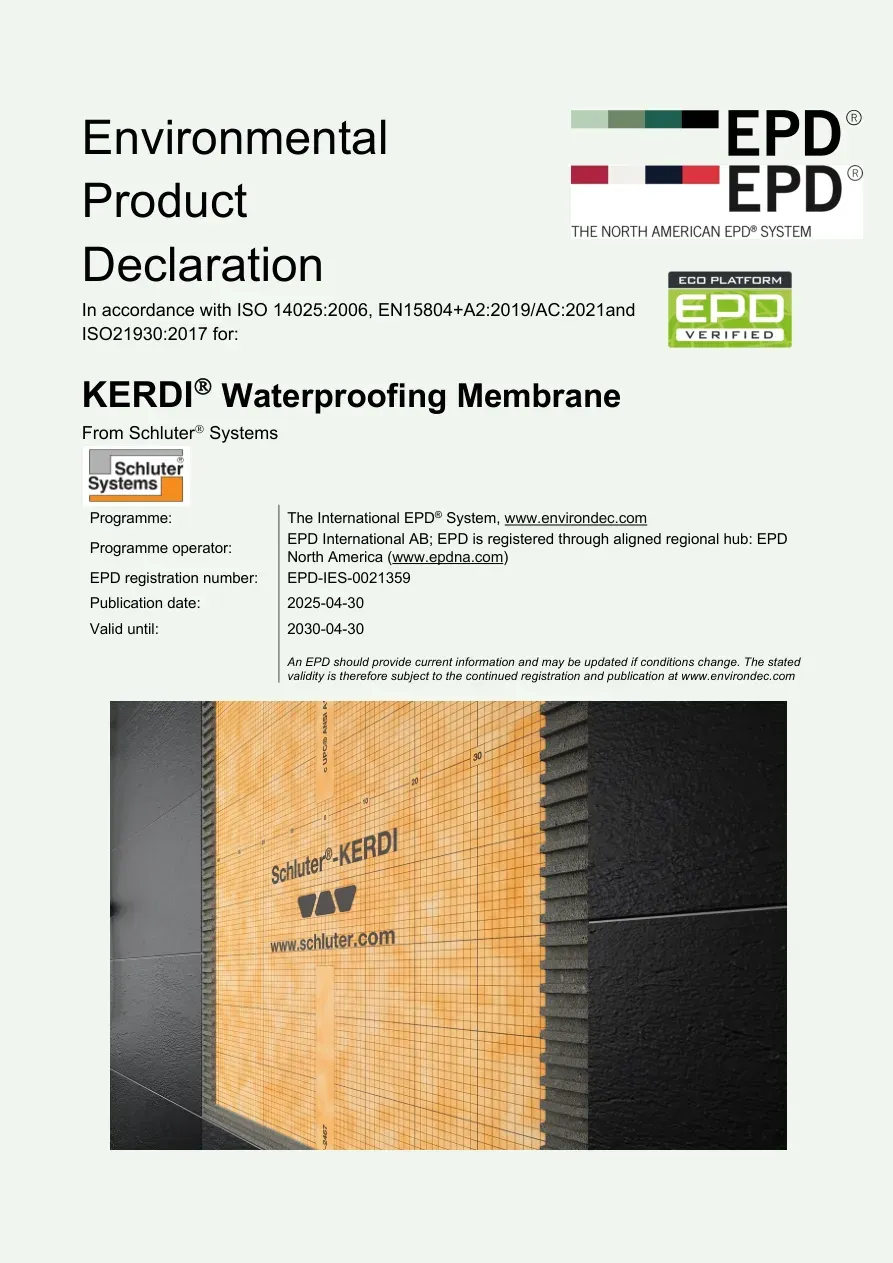

PAGE 1/17 Environmental Product Declaration In accordance with ISO 14025:2006, EN15804+A2:2019/AC:2021and ISO21930:2017 for: KERDIÒ Waterproofing Membrane From SchluterÒ Systems Programme: The International EPD® System, www.environdec.com Programme operator: EPD International AB; EPD is registered through aligned regional hub: EPD North America (www.epdna.com) EPD registration number: EPD-IES-0021359 Publication date: 2025-04-30 Valid until: 2030-04-30 An EPD should provide current information and may be updated if conditions change. The stated validity is therefore subject to the continued registration and publication at www.environdec.com

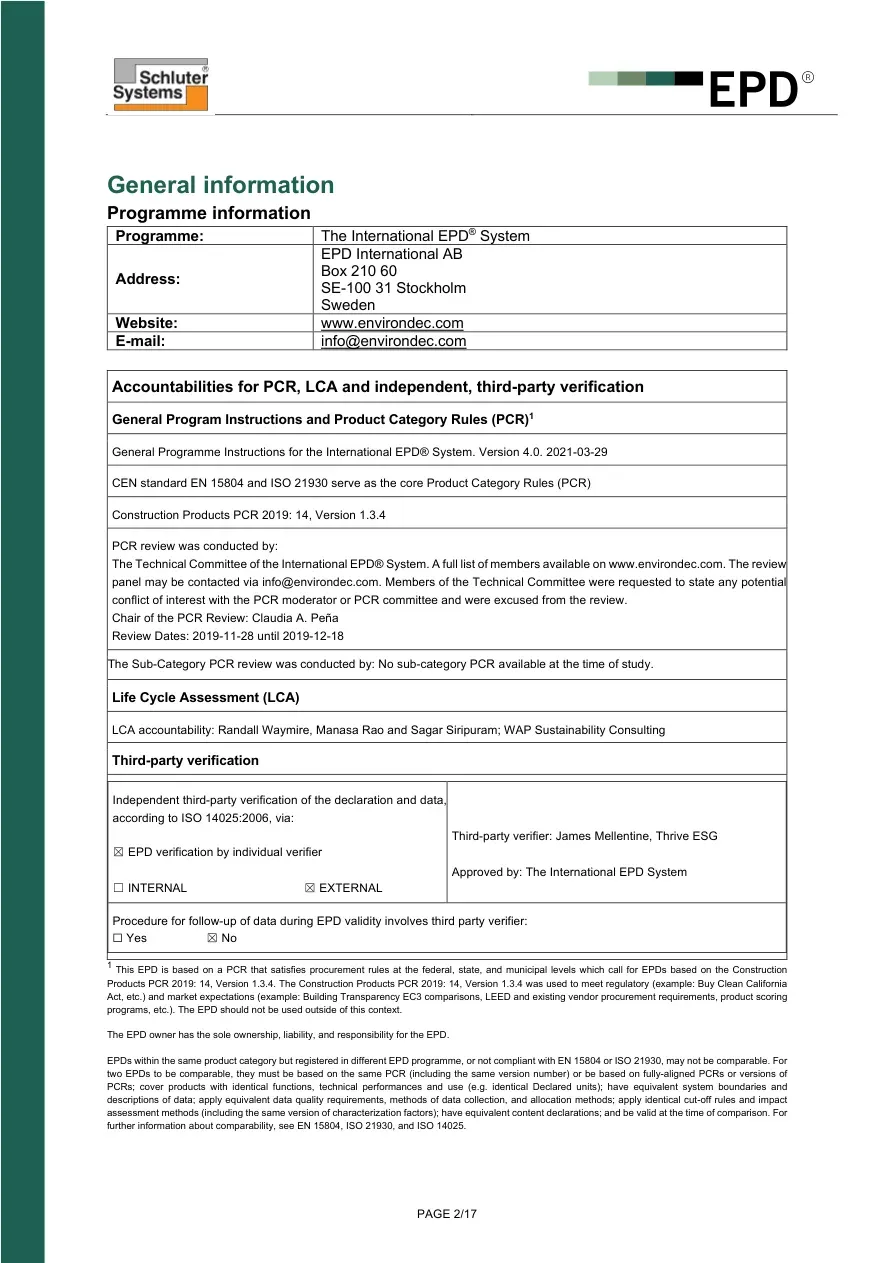

PAGE 2/17 General information Programme information Programme: The International EPD® System Address: EPD International AB Box 210 60 SE-100 31 Stockholm Sweden Website: www.environdec.com E-mail: info@environdec.com Accountabilities for PCR, LCA and independent, third-party verification General Program Instructions and Product Category Rules (PCR)1 General Programme Instructions for the International EPD® System. Version 4.0. 2021-03-29 CEN standard EN 15804 and ISO 21930 serve as the core Product Category Rules (PCR) Construction Products PCR 2019: 14, Version 1.3.4 PCR review was conducted by: The Technical Committee of the International EPD® System. A full list of members available on www.environdec.com. The review panel may be contacted via info@environdec.com. Members of the Technical Committee were requested to state any potential conflict of interest with the PCR moderator or PCR committee and were excused from the review. Chair of the PCR Review: Claudia A. Peña Review Dates: 2019-11-28 until 2019-12-18 The Sub-Category PCR review was conducted by: No sub-category PCR available at the time of study. Life Cycle Assessment (LCA) LCA accountability: Randall Waymire, Manasa Rao and Sagar Siripuram; WAP Sustainability Consulting Third-party verification Independent third-party verification of the declaration and data, according to ISO 14025:2006, via: ☒ EPD verification by individual verifier ☐ INTERNAL ☒ EXTERNAL Third-party verifier: James Mellentine, Thrive ESG Approved by: The International EPD System Procedure for follow-up of data during EPD validity involves third party verifier: ☐ Yes ☒ No 1 This EPD is based on a PCR that satisfies procurement rules at the federal, state, and municipal levels which call for EPDs based on the Construction Products PCR 2019: 14, Version 1.3.4. The Construction Products PCR 2019: 14, Version 1.3.4 was used to meet regulatory (example: Buy Clean California Act, etc.) and market expectations (example: Building Transparency EC3 comparisons, LEED and existing vendor procurement requirements, product scoring programs, etc.). The EPD should not be used outside of this context. The EPD owner has the sole ownership, liability, and responsibility for the EPD. EPDs within the same product category but registered in different EPD programme, or not compliant with EN 15804 or ISO 21930, may not be comparable. For two EPDs to be comparable, they must be based on the same PCR (including the same version number) or be based on fully-aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical Declared units); have equivalent system boundaries and descriptions of data; apply equivalent data quality requirements, methods of data collection, and allocation methods; apply identical cut-off rules and impact assessment methods (including the same version of characterization factors); have equivalent content declarations; and be valid at the time of comparison. For further information about comparability, see EN 15804, ISO 21930, and ISO 14025.

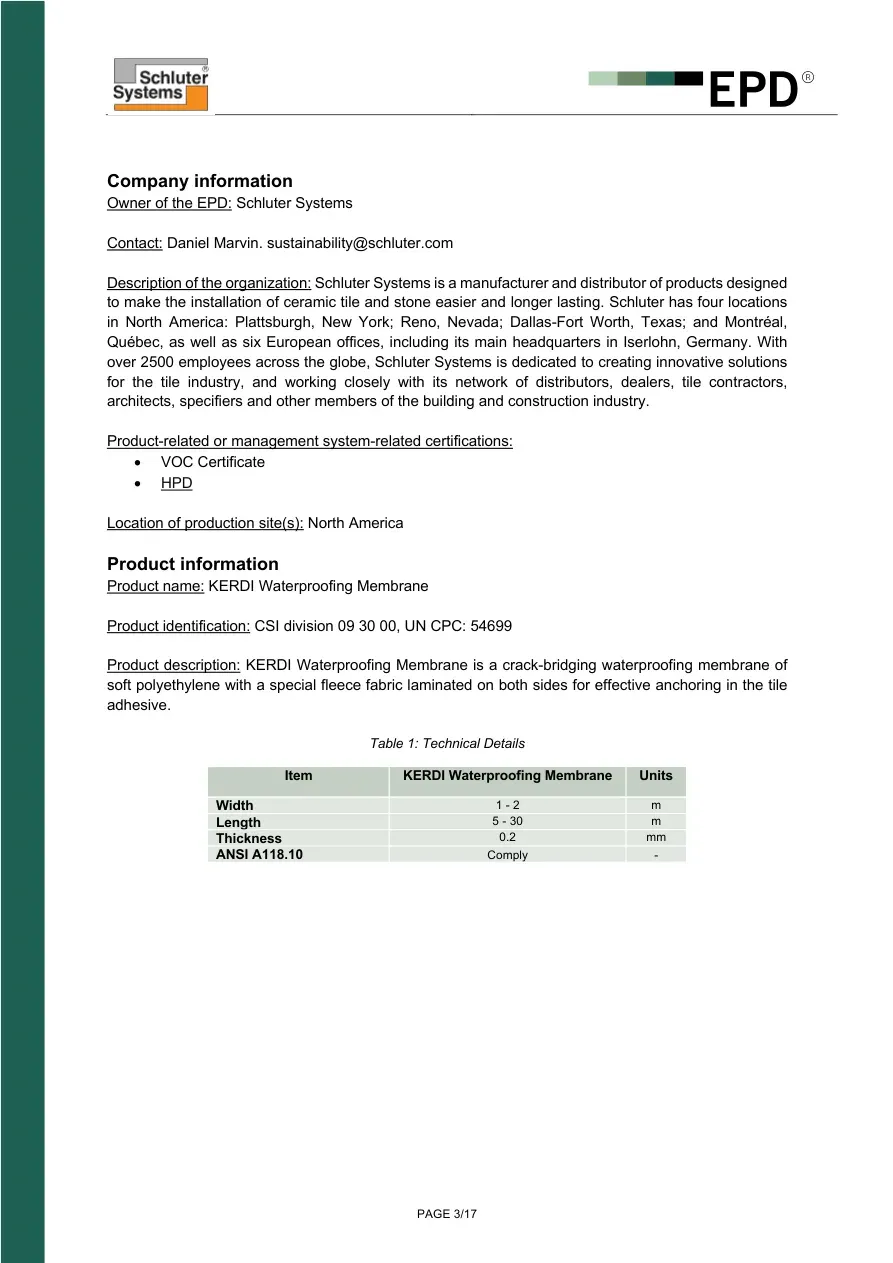

PAGE 3/17 Company information Owner of the EPD: Schluter Systems Contact: Daniel Marvin. sustainability@schluter.com Description of the organization: Schluter Systems is a manufacturer and distributor of products designed to make the installation of ceramic tile and stone easier and longer lasting. Schluter has four locations in North America: Plattsburgh, New York; Reno, Nevada; Dallas-Fort Worth, Texas; and Montréal, Québec, as well as six European offices, including its main headquarters in Iserlohn, Germany. With over 2500 employees across the globe, Schluter Systems is dedicated to creating innovative solutions for the tile industry, and working closely with its network of distributors, dealers, tile contractors, architects, specifiers and other members of the building and construction industry. Product-related or management system-related certifications: • VOC Certificate • HPD Location of production site(s): North America Product information Product name: KERDI Waterproofing Membrane Product identification: CSI division 09 30 00, UN CPC: 54699 Product description: KERDI Waterproofing Membrane is a crack-bridging waterproofing membrane of soft polyethylene with a special fleece fabric laminated on both sides for effective anchoring in the tile adhesive. Table 1: Technical Details Item KERDI Waterproofing Membrane Units Width 1 - 2 m Length 5 - 30 m Thickness 0.2 mm ANSI A118.10 Comply -

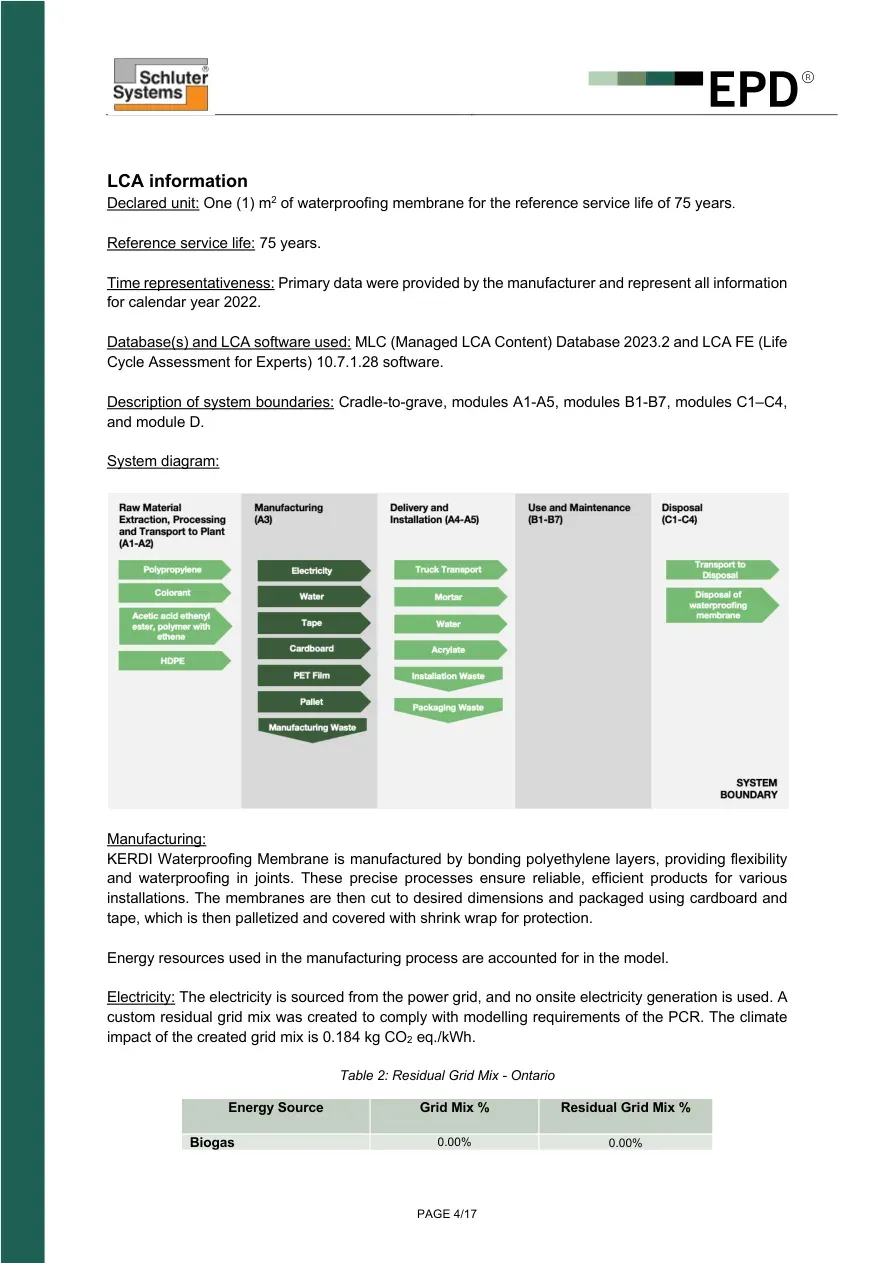

PAGE 4/17 LCA information Declared unit: One (1) m2 of waterproofing membrane for the reference service life of 75 years. Reference service life: 75 years. Time representativeness: Primary data were provided by the manufacturer and represent all information for calendar year 2022. Database(s) and LCA software used: MLC (Managed LCA Content) Database 2023.2 and LCA FE (Life Cycle Assessment for Experts) 10.7.1.28 software. Description of system boundaries: Cradle-to-grave, modules A1-A5, modules B1-B7, modules C1–C4, and module D. System diagram: Manufacturing: KERDI Waterproofing Membrane is manufactured by bonding polyethylene layers, providing flexibility and waterproofing in joints. These precise processes ensure reliable, efficient products for various installations. The membranes are then cut to desired dimensions and packaged using cardboard and tape, which is then palletized and covered with shrink wrap for protection. Energy resources used in the manufacturing process are accounted for in the model. Electricity: The electricity is sourced from the power grid, and no onsite electricity generation is used. A custom residual grid mix was created to comply with modelling requirements of the PCR. The climate impact of the created grid mix is 0.184 kg CO2 eq./kWh. Table 2: Residual Grid Mix - Ontario Energy Source Grid Mix % Residual Grid Mix % Biogas 0.00% 0.00%

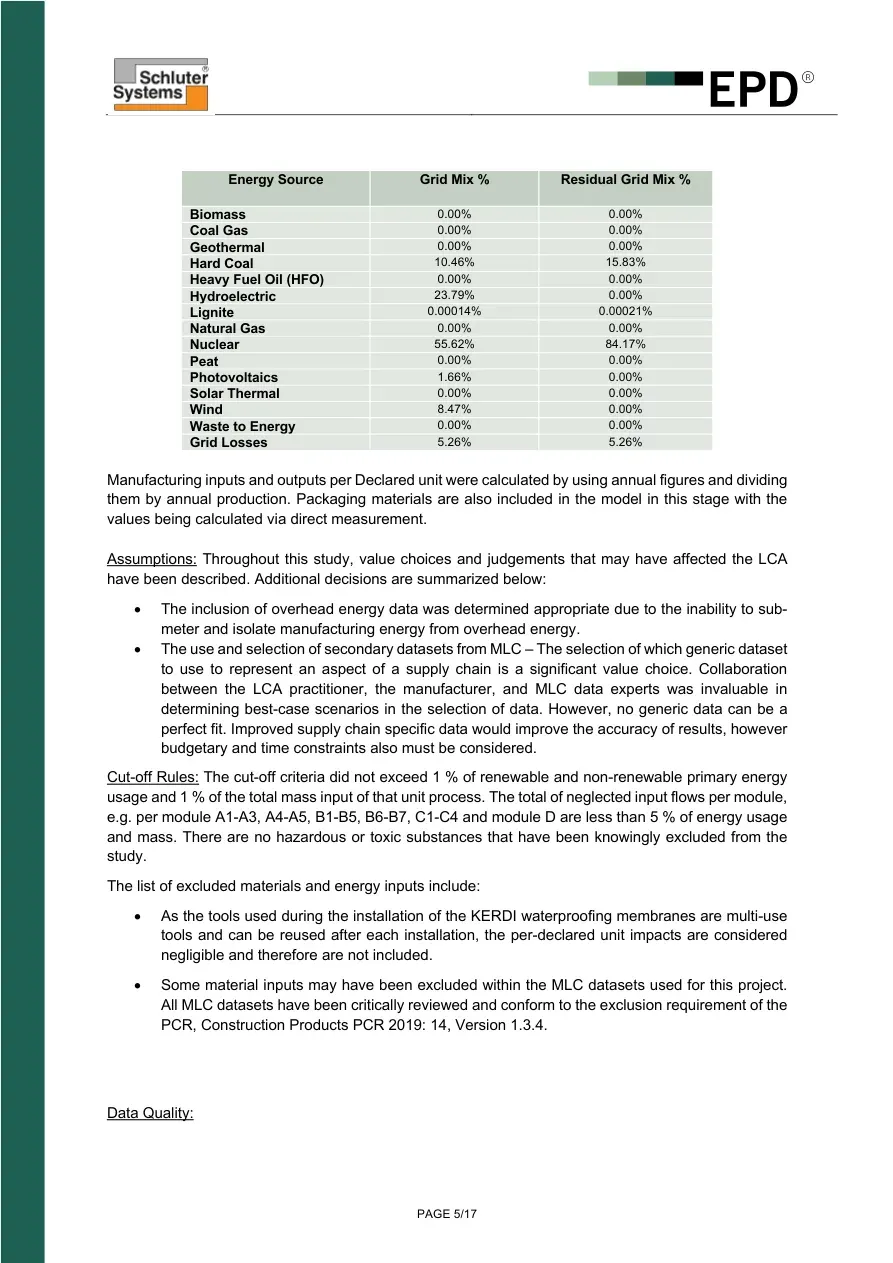

PAGE 5/17 Energy Source Grid Mix % Residual Grid Mix % Biomass 0.00% 0.00% Coal Gas 0.00% 0.00% Geothermal 0.00% 0.00% Hard Coal 10.46% 15.83% Heavy Fuel Oil (HFO) 0.00% 0.00% Hydroelectric 23.79% 0.00% Lignite 0.00014% 0.00021% Natural Gas 0.00% 0.00% Nuclear 55.62% 84.17% Peat 0.00% 0.00% Photovoltaics 1.66% 0.00% Solar Thermal 0.00% 0.00% Wind 8.47% 0.00% Waste to Energy 0.00% 0.00% Grid Losses 5.26% 5.26% Manufacturing inputs and outputs per Declared unit were calculated by using annual figures and dividing them by annual production. Packaging materials are also included in the model in this stage with the values being calculated via direct measurement. Assumptions: Throughout this study, value choices and judgements that may have affected the LCA have been described. Additional decisions are summarized below: • The inclusion of overhead energy data was determined appropriate due to the inability to sub-meter and isolate manufacturing energy from overhead energy. • The use and selection of secondary datasets from MLC – The selection of which generic dataset to use to represent an aspect of a supply chain is a significant value choice. Collaboration between the LCA practitioner, the manufacturer, and MLC data experts was invaluable in determining best-case scenarios in the selection of data. However, no generic data can be a perfect fit. Improved supply chain specific data would improve the accuracy of results, however budgetary and time constraints also must be considered. Cut-off Rules: The cut-off criteria did not exceed 1 % of renewable and non-renewable primary energy usage and 1 % of the total mass input of that unit process. The total of neglected input flows per module, e.g. per module A1-A3, A4-A5, B1-B5, B6-B7, C1-C4 and module D are less than 5 % of energy usage and mass. There are no hazardous or toxic substances that have been knowingly excluded from the study. The list of excluded materials and energy inputs include: • As the tools used during the installation of the KERDI waterproofing membranes are multi-use tools and can be reused after each installation, the per-declared unit impacts are considered negligible and therefore are not included. • Some material inputs may have been excluded within the MLC datasets used for this project. All MLC datasets have been critically reviewed and conform to the exclusion requirement of the PCR, Construction Products PCR 2019: 14, Version 1.3.4. Data Quality:

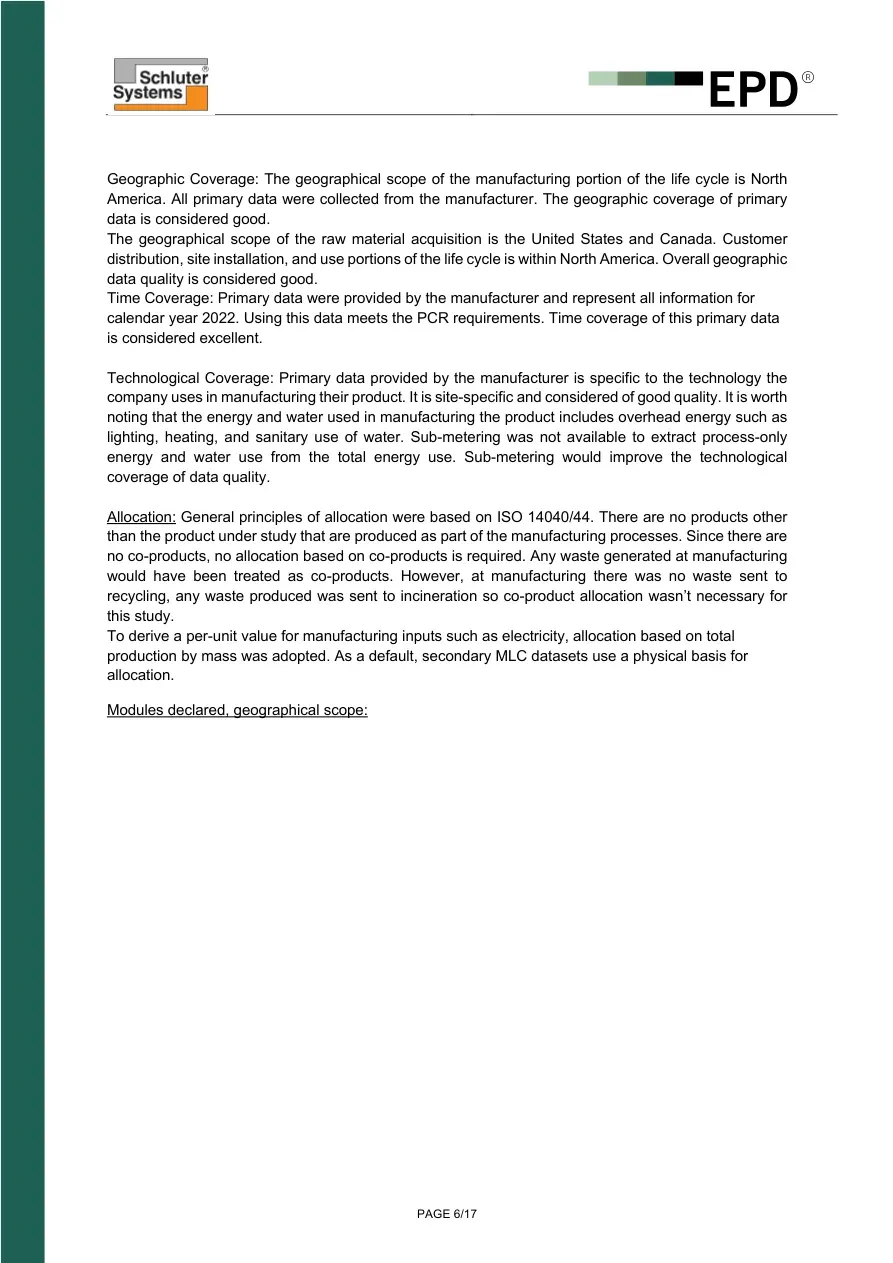

PAGE 6/17 Geographic Coverage: The geographical scope of the manufacturing portion of the life cycle is North America. All primary data were collected from the manufacturer. The geographic coverage of primary data is considered good. The geographical scope of the raw material acquisition is the United States and Canada. Customer distribution, site installation, and use portions of the life cycle is within North America. Overall geographic data quality is considered good. Time Coverage: Primary data were provided by the manufacturer and represent all information for calendar year 2022. Using this data meets the PCR requirements. Time coverage of this primary data is considered excellent. Technological Coverage: Primary data provided by the manufacturer is specific to the technology the company uses in manufacturing their product. It is site-specific and considered of good quality. It is worth noting that the energy and water used in manufacturing the product includes overhead energy such as lighting, heating, and sanitary use of water. Sub-metering was not available to extract process-only energy and water use from the total energy use. Sub-metering would improve the technological coverage of data quality. Allocation: General principles of allocation were based on ISO 14040/44. There are no products other than the product under study that are produced as part of the manufacturing processes. Since there are no co-products, no allocation based on co-products is required. Any waste generated at manufacturing would have been treated as co-products. However, at manufacturing there was no waste sent to recycling, any waste produced was sent to incineration so co-product allocation wasn’t necessary for this study. To derive a per-unit value for manufacturing inputs such as electricity, allocation based on total production by mass was adopted. As a default, secondary MLC datasets use a physical basis for allocation. Modules declared, geographical scope:

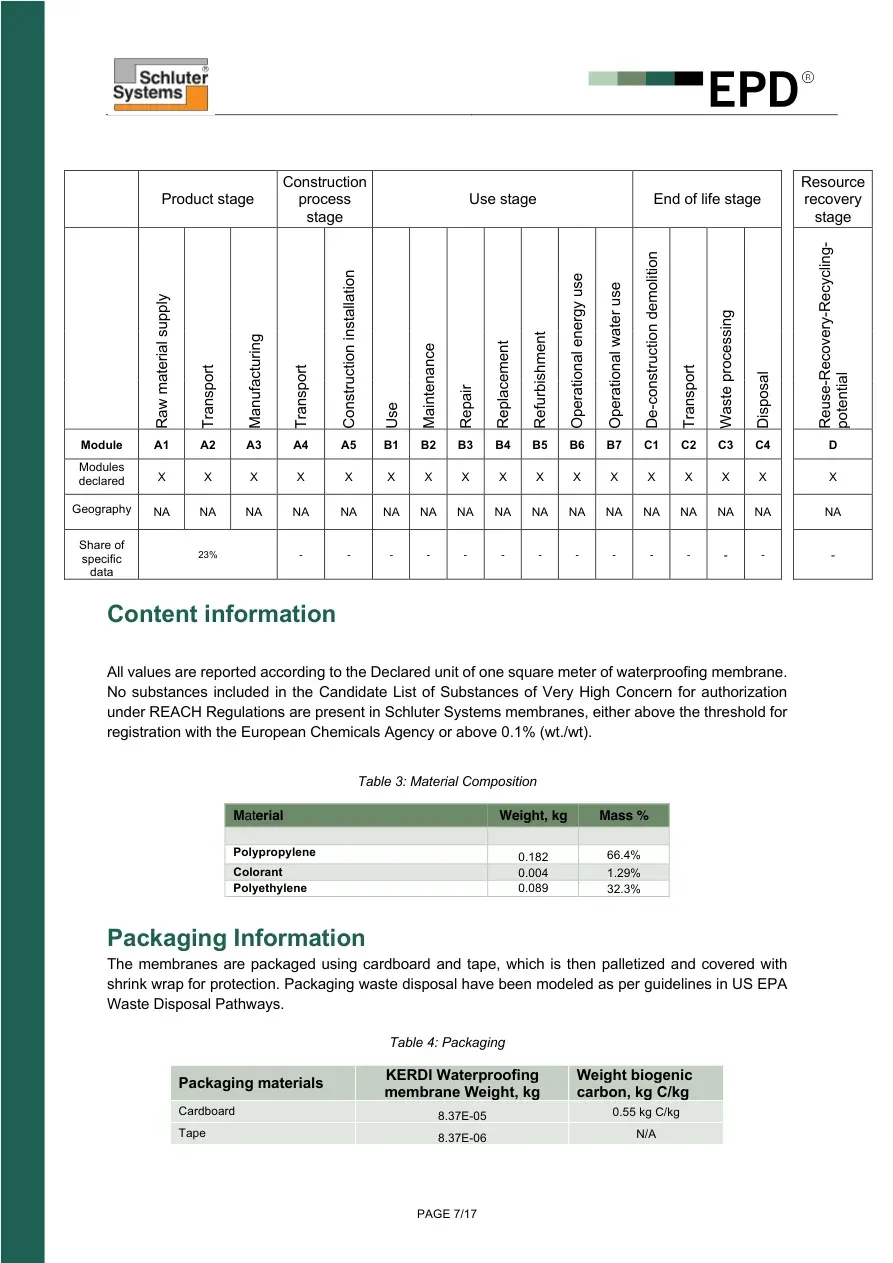

PAGE 7/17 Product stage Construction process stage Use stage End of life stage Resource recovery stage Raw material supply Transport Manufacturing Transport Construction installation Use Maintenance Repair Replacement Refurbishment Operational energy use Operational water use De-construction demolition Transport Waste processing Disposal Reuse-Recovery-Recycling-potential Module A1 A2 A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Modules declared X X X X X X X X X X X X X X X X X Geography NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA NA Share of specific data 23% - - - - - - - - - - - - - - Content information All values are reported according to the Declared unit of one square meter of waterproofing membrane. No substances included in the Candidate List of Substances of Very High Concern for authorization under REACH Regulations are present in Schluter Systems membranes, either above the threshold for registration with the European Chemicals Agency or above 0.1% (wt./wt). Table 3: Material Composition Material Weight, kg Mass % Polypropylene 0.182 66.4% Colorant 0.004 1.29% Polyethylene 0.089 32.3% Packaging Information The membranes are packaged using cardboard and tape, which is then palletized and covered with shrink wrap for protection. Packaging waste disposal have been modeled as per guidelines in US EPA Waste Disposal Pathways. Table 4: Packaging Packaging materials KERDI Waterproofing membrane Weight, kg Weight biogenic carbon, kg C/kg Cardboard 8.37E-05 0.55 kg C/kg Tape 8.37E-06 N/A

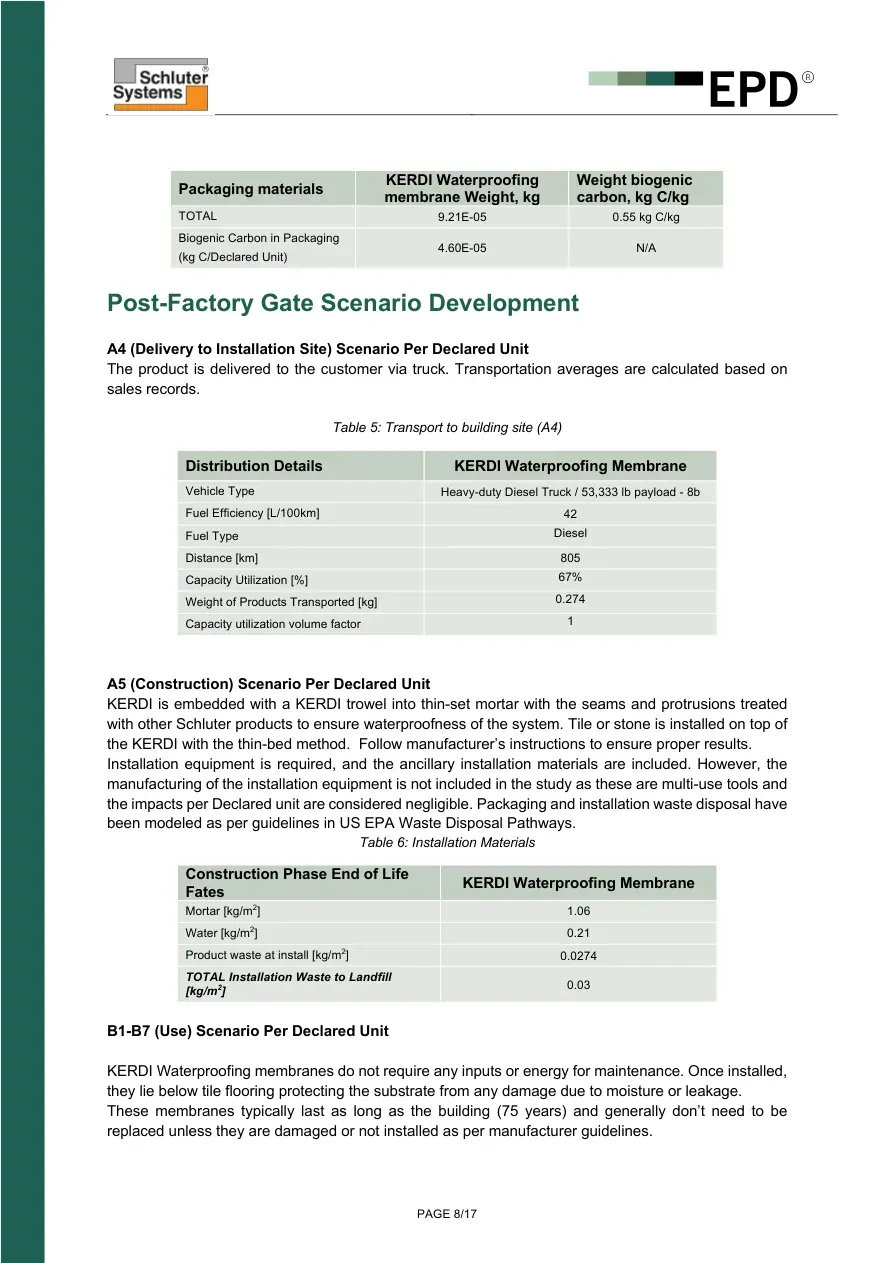

PAGE 8/17 Packaging materials KERDI Waterproofing membrane Weight, kg Weight biogenic carbon, kg C/kg TOTAL 9.21E-05 0.55 kg C/kg Biogenic Carbon in Packaging (kg C/Declared Unit) 4.60E-05 N/A Post-Factory Gate Scenario Development A4 (Delivery to Installation Site) Scenario Per Declared Unit The product is delivered to the customer via truck. Transportation averages are calculated based on sales records. Table 5: Transport to building site (A4) Distribution Details KERDI Waterproofing Membrane Vehicle Type Heavy-duty Diesel Truck / 53,333 lb payload - 8b Fuel Efficiency [L/100km] 42 Fuel Type Diesel Distance [km] 805 Capacity Utilization [%] 67% Weight of Products Transported [kg] 0.274 Capacity utilization volume factor 1 A5 (Construction) Scenario Per Declared Unit KERDI is embedded with a KERDI trowel into thin-set mortar with the seams and protrusions treated with other Schluter products to ensure waterproofness of the system. Tile or stone is installed on top of the KERDI with the thin-bed method. Follow manufacturer’s instructions to ensure proper results. Installation equipment is required, and the ancillary installation materials are included. However, the manufacturing of the installation equipment is not included in the study as these are multi-use tools and the impacts per Declared unit are considered negligible. Packaging and installation waste disposal have been modeled as per guidelines in US EPA Waste Disposal Pathways. Table 6: Installation Materials Construction Phase End of Life Fates KERDI Waterproofing Membrane Mortar [kg/m2] 1.06 Water [kg/m2] 0.21 Product waste at install [kg/m2] 0.0274 TOTAL Installation Waste to Landfill [kg/m2] 0.03 B1-B7 (Use) Scenario Per Declared Unit KERDI Waterproofing membranes do not require any inputs or energy for maintenance. Once installed, they lie below tile flooring protecting the substrate from any damage due to moisture or leakage. These membranes typically last as long as the building (75 years) and generally don’t need to be replaced unless they are damaged or not installed as per manufacturer guidelines.

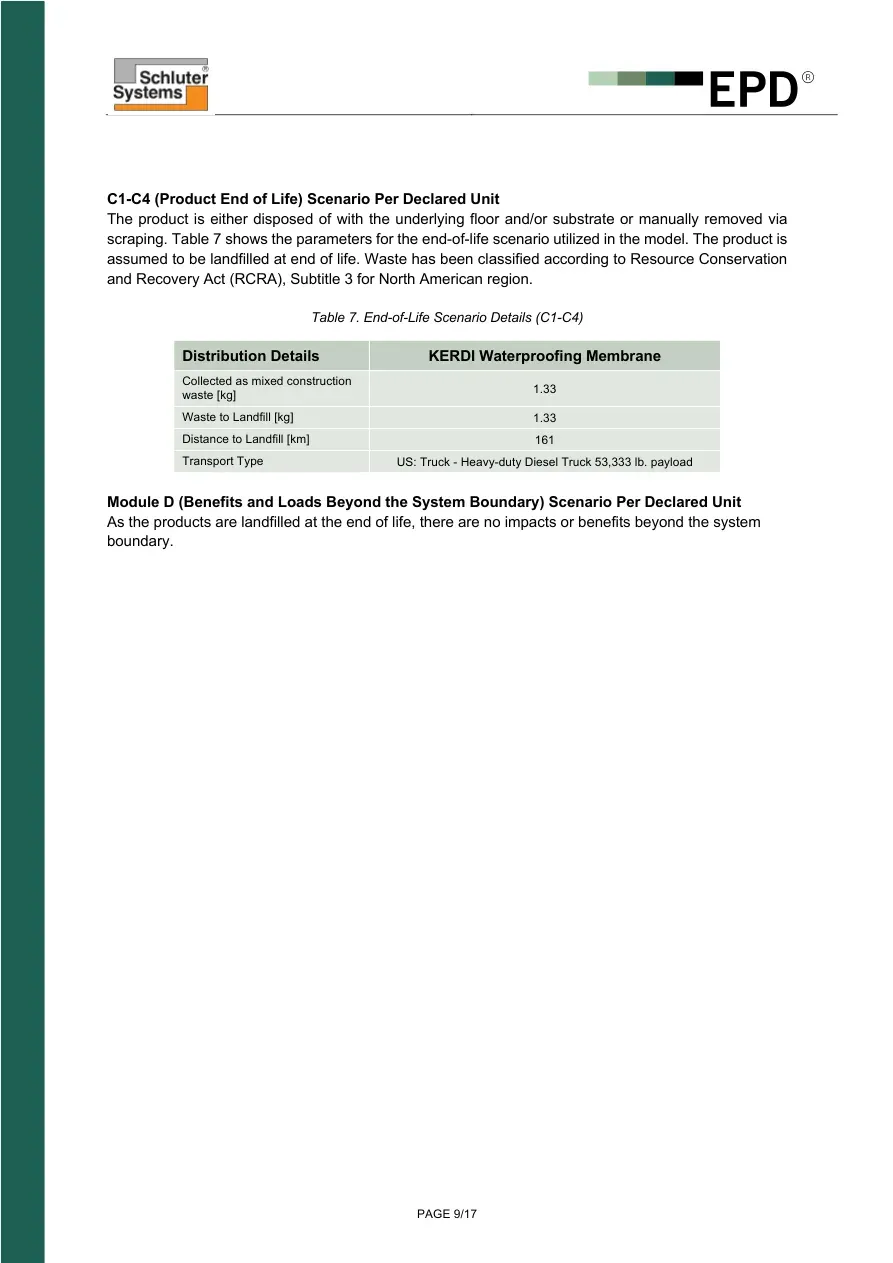

PAGE 9/17 C1-C4 (Product End of Life) Scenario Per Declared Unit The product is either disposed of with the underlying floor and/or substrate or manually removed via scraping. Table 7 shows the parameters for the end-of-life scenario utilized in the model. The product is assumed to be landfilled at end of life. Waste has been classified according to Resource Conservation and Recovery Act (RCRA), Subtitle 3 for North American region. Table 7. End-of-Life Scenario Details (C1-C4) Distribution Details KERDI Waterproofing Membrane Collected as mixed construction waste [kg] 1.33 Waste to Landfill [kg] 1.33 Distance to Landfill [km] 161 Transport Type US: Truck - Heavy-duty Diesel Truck 53,333 lb. payload Module D (Benefits and Loads Beyond the System Boundary) Scenario Per Declared Unit As the products are landfilled at the end of life, there are no impacts or benefits beyond the system boundary.

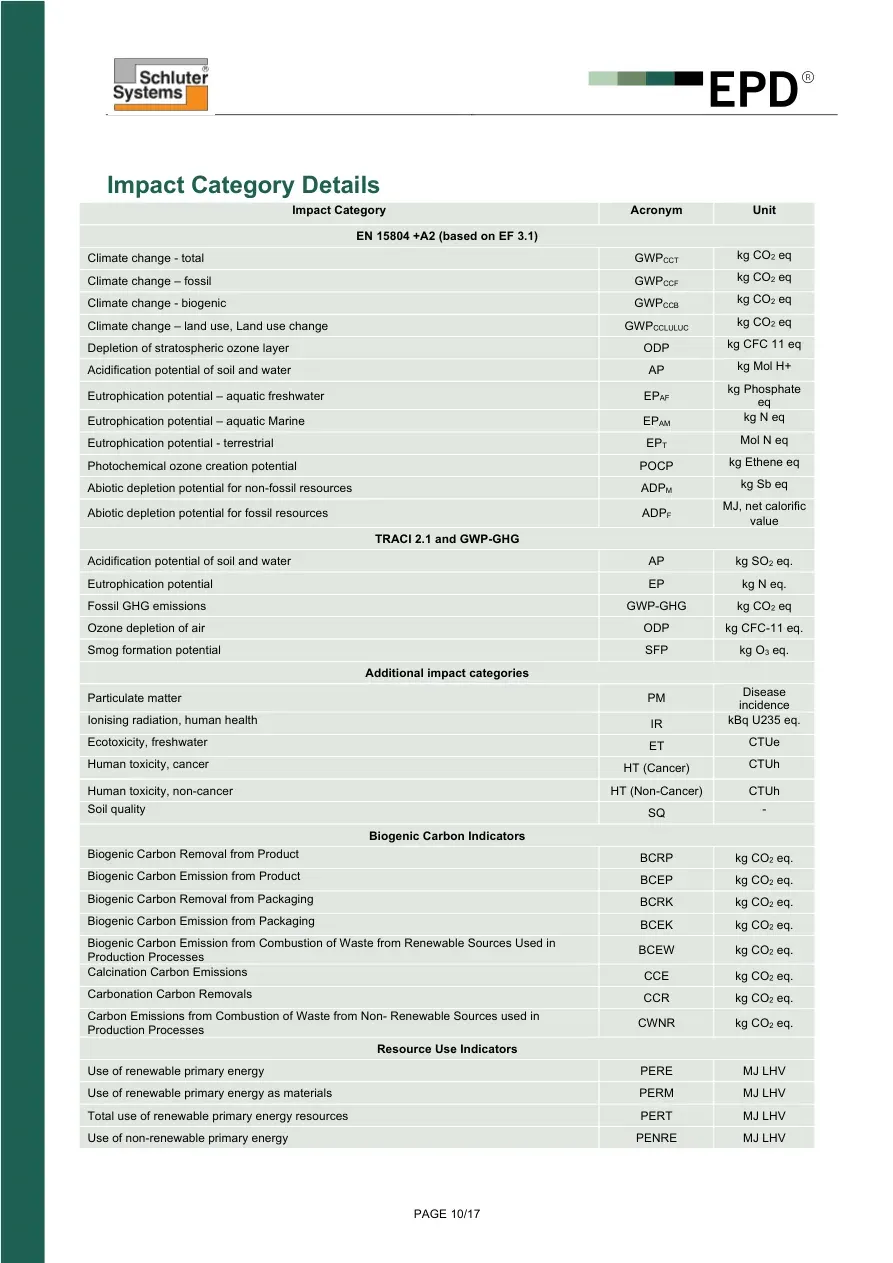

PAGE 10/17 Impact Category Details Impact Category Acronym Unit EN 15804 +A2 (based on EF 3.1) Climate change - total GWPCCT kg CO2 eq Climate change – fossil GWPCCF kg CO2 eq Climate change - biogenic GWPCCB kg CO2 eq Climate change – land use, Land use change GWPCCLULUC kg CO2 eq Depletion of stratospheric ozone layer ODP kg CFC 11 eq Acidification potential of soil and water AP kg Mol H+ Eutrophication potential – aquatic freshwater EPAF kg Phosphate eq Eutrophication potential – aquatic Marine EPAM kg N eq Eutrophication potential - terrestrial EPT Mol N eq Photochemical ozone creation potential POCP kg Ethene eq Abiotic depletion potential for non-fossil resources ADPM kg Sb eq Abiotic depletion potential for fossil resources ADPF MJ, net calorific value TRACI 2.1 and GWP-GHG Acidification potential of soil and water AP kg SO2 eq. Eutrophication potential EP kg N eq. Fossil GHG emissions GWP-GHG kg CO2 eq Ozone depletion of air ODP kg CFC-11 eq. Smog formation potential SFP kg O3 eq. Additional impact categories Particulate matter PM Disease incidence Ionising radiation, human health IR kBq U235 eq. Ecotoxicity, freshwater ET CTUe Human toxicity, cancer HT (Cancer) CTUh Human toxicity, non-cancer HT (Non-Cancer) CTUh Soil quality SQ - Biogenic Carbon Indicators Biogenic Carbon Removal from Product BCRP kg CO2 eq. Biogenic Carbon Emission from Product BCEP kg CO2 eq. Biogenic Carbon Removal from Packaging BCRK kg CO2 eq. Biogenic Carbon Emission from Packaging BCEK kg CO2 eq. Biogenic Carbon Emission from Combustion of Waste from Renewable Sources Used in Production Processes BCEW kg CO2 eq. Calcination Carbon Emissions CCE kg CO2 eq. Carbonation Carbon Removals CCR kg CO2 eq. Carbon Emissions from Combustion of Waste from Non- Renewable Sources used in Production Processes CWNR kg CO2 eq. Resource Use Indicators Use of renewable primary energy PERE MJ LHV Use of renewable primary energy as materials PERM MJ LHV Total use of renewable primary energy resources PERT MJ LHV Use of non-renewable primary energy PENRE MJ LHV

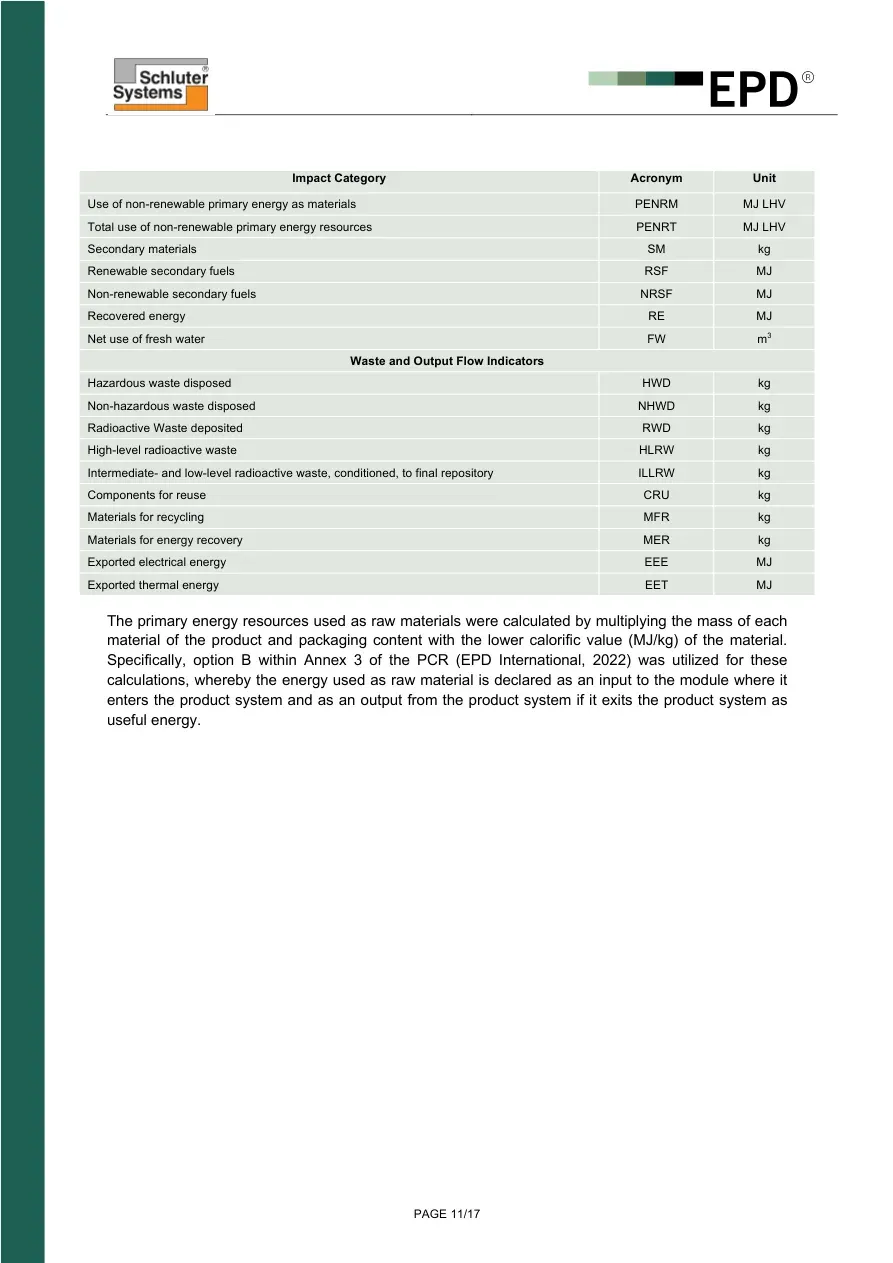

PAGE 11/17 Impact Category Acronym Unit Use of non-renewable primary energy as materials PENRM MJ LHV Total use of non-renewable primary energy resources PENRT MJ LHV Secondary materials SM kg Renewable secondary fuels RSF MJ Non-renewable secondary fuels NRSF MJ Recovered energy RE MJ Net use of fresh water FW m3 Waste and Output Flow Indicators Hazardous waste disposed HWD kg Non-hazardous waste disposed NHWD kg Radioactive Waste deposited RWD kg High-level radioactive waste HLRW kg Intermediate- and low-level radioactive waste, conditioned, to final repository ILLRW kg Components for reuse CRU kg Materials for recycling MFR kg Materials for energy recovery MER kg Exported electrical energy EEE MJ Exported thermal energy EET MJ The primary energy resources used as raw materials were calculated by multiplying the mass of each material of the product and packaging content with the lower calorific value (MJ/kg) of the material. Specifically, option B within Annex 3 of the PCR (EPD International, 2022) was utilized for these calculations, whereby the energy used as raw material is declared as an input to the module where it enters the product system and as an output from the product system if it exits the product system as useful energy.

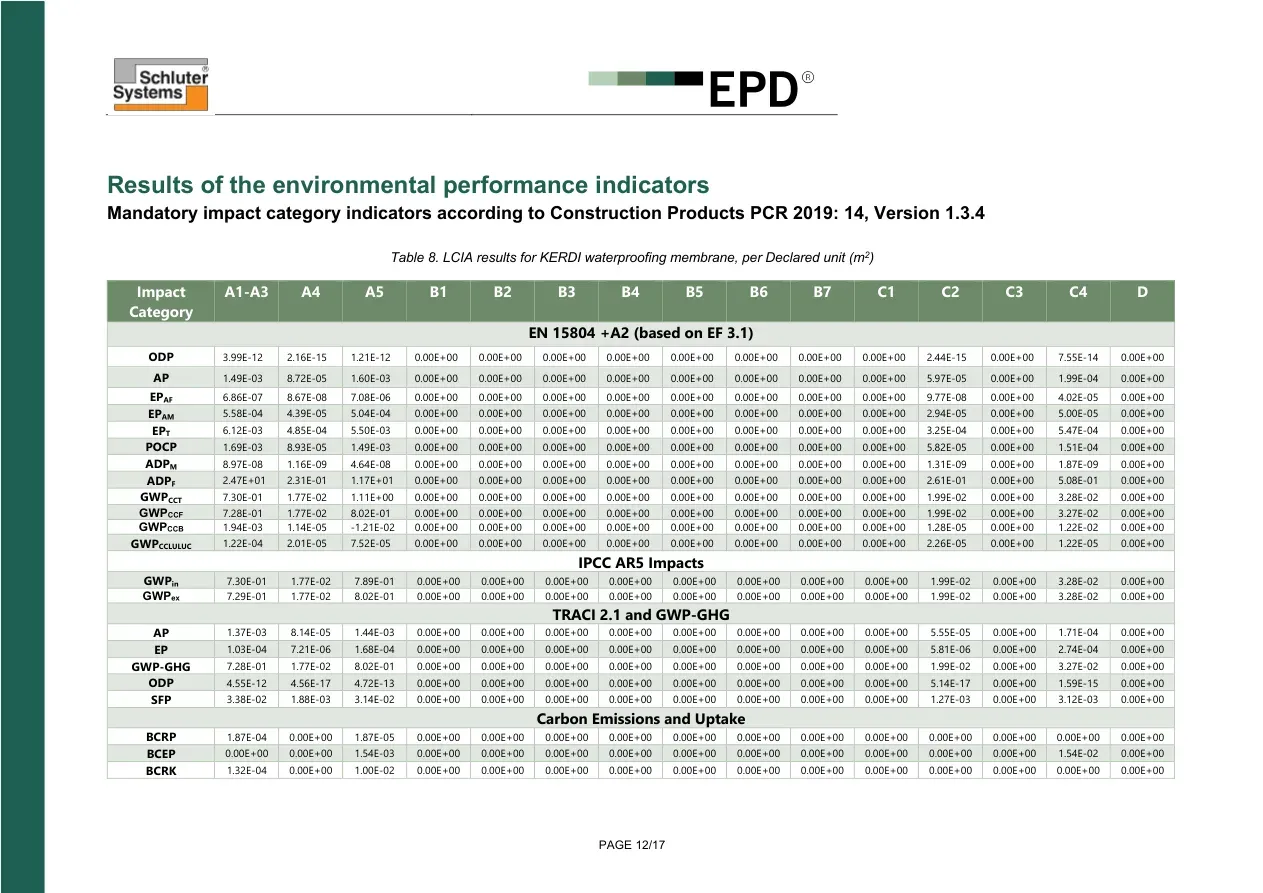

PAGE 12/17 Results of the environmental performance indicators Mandatory impact category indicators according to Construction Products PCR 2019: 14, Version 1.3.4 Table 8. LCIA results for KERDI waterproofing membrane, per Declared unit (m2) Impact Category A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D EN 15804 +A2 (based on EF 3.1) ODP 3.99E-12 2.16E-15 1.21E-12 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 2.44E-15 0.00E+00 7.55E-14 0.00E+00 AP 1.49E-03 8.72E-05 1.60E-03 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 5.97E-05 0.00E+00 1.99E-04 0.00E+00 EPAF 6.86E-07 8.67E-08 7.08E-06 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 9.77E-08 0.00E+00 4.02E-05 0.00E+00 EPAM 5.58E-04 4.39E-05 5.04E-04 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 2.94E-05 0.00E+00 5.00E-05 0.00E+00 EPT 6.12E-03 4.85E-04 5.50E-03 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 3.25E-04 0.00E+00 5.47E-04 0.00E+00 POCP 1.69E-03 8.93E-05 1.49E-03 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 5.82E-05 0.00E+00 1.51E-04 0.00E+00 ADPM 8.97E-08 1.16E-09 4.64E-08 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.31E-09 0.00E+00 1.87E-09 0.00E+00 ADPF 2.47E+01 2.31E-01 1.17E+01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 2.61E-01 0.00E+00 5.08E-01 0.00E+00 GWPCCT 7.30E-01 1.77E-02 1.11E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.99E-02 0.00E+00 3.28E-02 0.00E+00 GWPCCF 7.28E-01 1.77E-02 8.02E-01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.99E-02 0.00E+00 3.27E-02 0.00E+00 GWPCCB 1.94E-03 1.14E-05 -1.21E-02 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.28E-05 0.00E+00 1.22E-02 0.00E+00 GWPCCLULUC 1.22E-04 2.01E-05 7.52E-05 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 2.26E-05 0.00E+00 1.22E-05 0.00E+00 IPCC AR5 Impacts GWPin 7.30E-01 1.77E-02 7.89E-01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.99E-02 0.00E+00 3.28E-02 0.00E+00 GWPex 7.29E-01 1.77E-02 8.02E-01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.99E-02 0.00E+00 3.28E-02 0.00E+00 TRACI 2.1 and GWP-GHG AP 1.37E-03 8.14E-05 1.44E-03 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 5.55E-05 0.00E+00 1.71E-04 0.00E+00 EP 1.03E-04 7.21E-06 1.68E-04 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 5.81E-06 0.00E+00 2.74E-04 0.00E+00 GWP-GHG 7.28E-01 1.77E-02 8.02E-01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.99E-02 0.00E+00 3.27E-02 0.00E+00 ODP 4.55E-12 4.56E-17 4.72E-13 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 5.14E-17 0.00E+00 1.59E-15 0.00E+00 SFP 3.38E-02 1.88E-03 3.14E-02 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.27E-03 0.00E+00 3.12E-03 0.00E+00 Carbon Emissions and Uptake BCRP 1.87E-04 0.00E+00 1.87E-05 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 BCEP 0.00E+00 0.00E+00 1.54E-03 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.54E-02 0.00E+00 BCRK 1.32E-04 0.00E+00 1.00E-02 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00

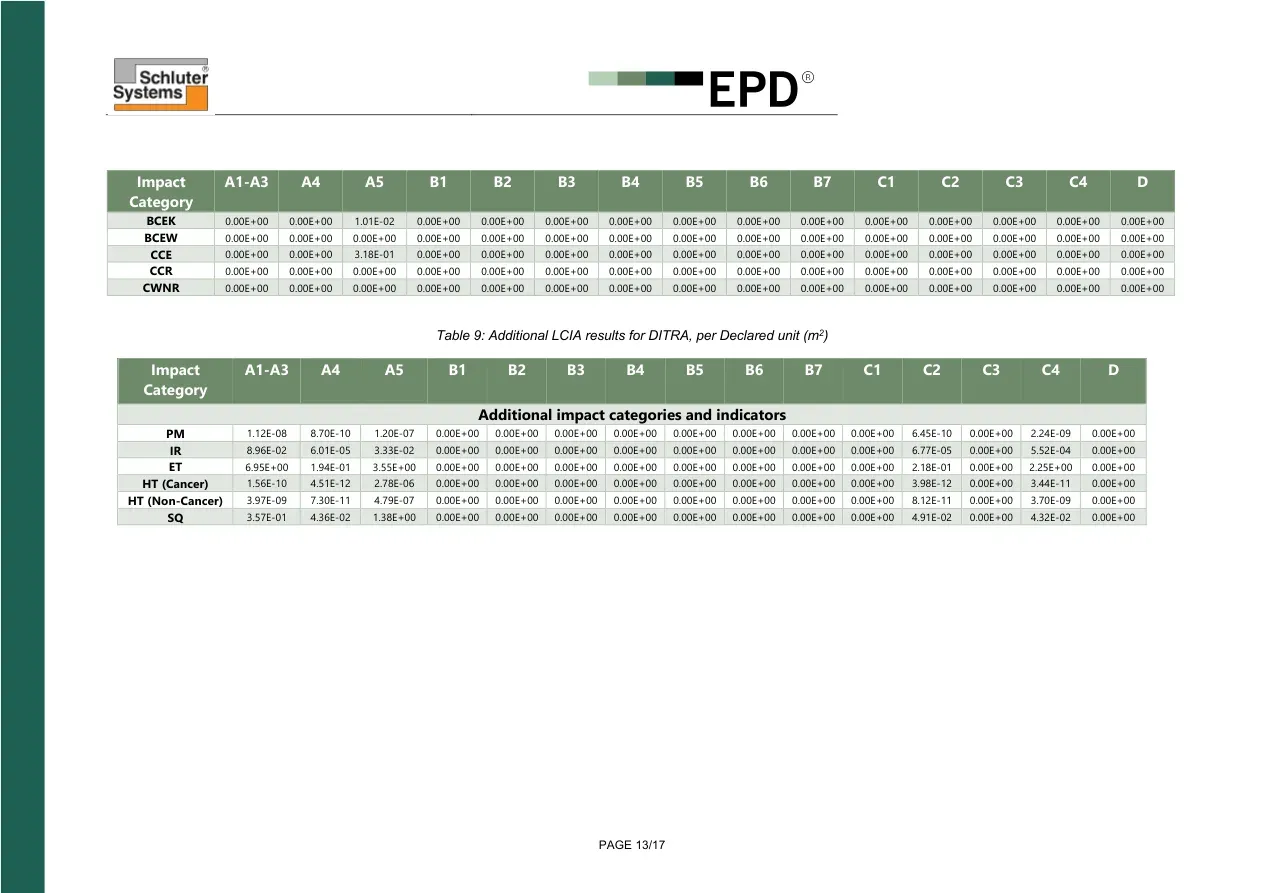

PAGE 13/17 Impact Category A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D BCEK 0.00E+00 0.00E+00 1.01E-02 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 BCEW 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 CCE 0.00E+00 0.00E+00 3.18E-01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 CCR 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 CWNR 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 Table 9: Additional LCIA results for DITRA, per Declared unit (m2) Impact Category A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Additional impact categories and indicators PM 1.12E-08 8.70E-10 1.20E-07 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 6.45E-10 0.00E+00 2.24E-09 0.00E+00 IR 8.96E-02 6.01E-05 3.33E-02 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 6.77E-05 0.00E+00 5.52E-04 0.00E+00 ET 6.95E+00 1.94E-01 3.55E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 2.18E-01 0.00E+00 2.25E+00 0.00E+00 HT (Cancer) 1.56E-10 4.51E-12 2.78E-06 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 3.98E-12 0.00E+00 3.44E-11 0.00E+00 HT (Non-Cancer) 3.97E-09 7.30E-11 4.79E-07 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 8.12E-11 0.00E+00 3.70E-09 0.00E+00 SQ 3.57E-01 4.36E-02 1.38E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 4.91E-02 0.00E+00 4.32E-02 0.00E+00

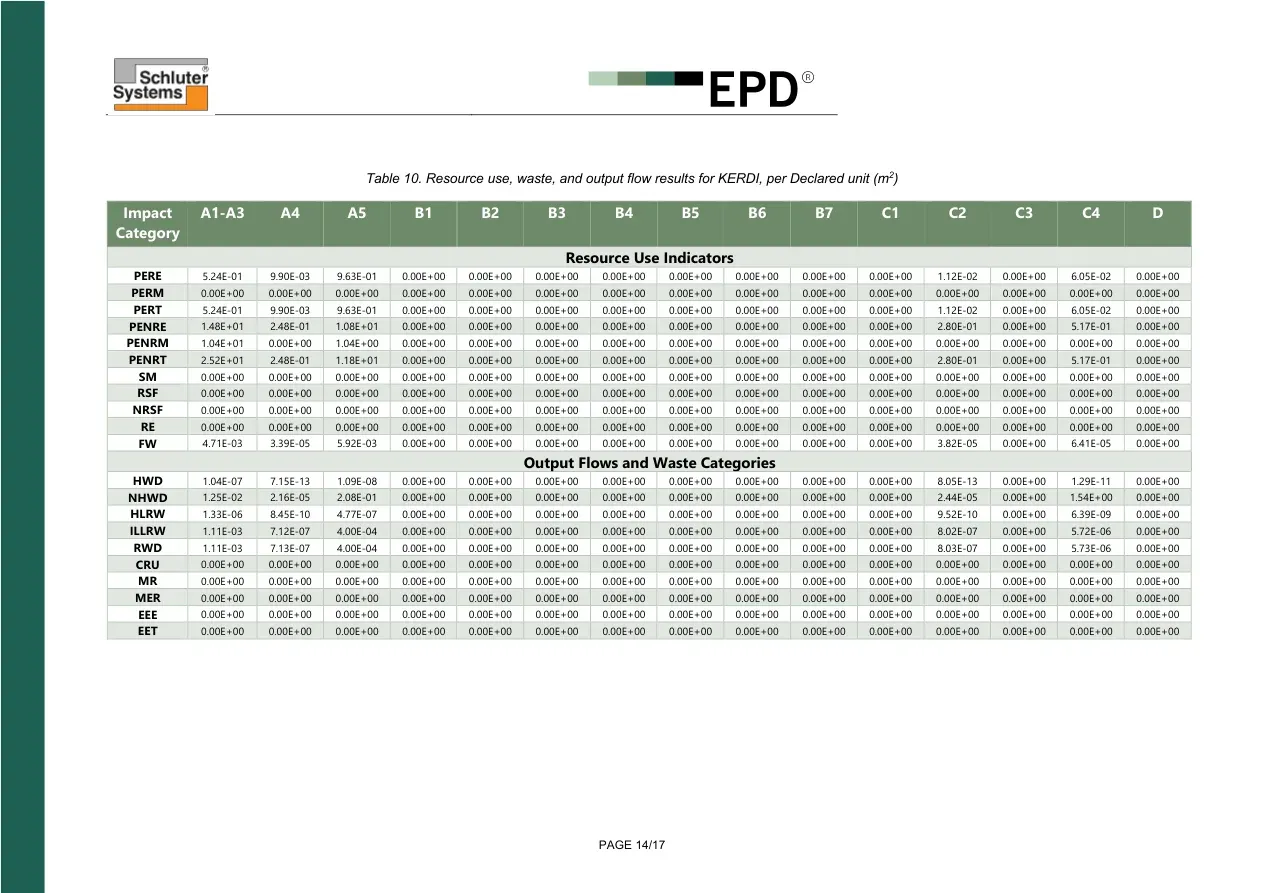

PAGE 14/17 Table 10. Resource use, waste, and output flow results for KERDI, per Declared unit (m2) Impact Category A1-A3 A4 A5 B1 B2 B3 B4 B5 B6 B7 C1 C2 C3 C4 D Resource Use Indicators PERE 5.24E-01 9.90E-03 9.63E-01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.12E-02 0.00E+00 6.05E-02 0.00E+00 PERM 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 PERT 5.24E-01 9.90E-03 9.63E-01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 1.12E-02 0.00E+00 6.05E-02 0.00E+00 PENRE 1.48E+01 2.48E-01 1.08E+01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 2.80E-01 0.00E+00 5.17E-01 0.00E+00 PENRM 1.04E+01 0.00E+00 1.04E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 PENRT 2.52E+01 2.48E-01 1.18E+01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 2.80E-01 0.00E+00 5.17E-01 0.00E+00 SM 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 RSF 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 NRSF 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 RE 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 FW 4.71E-03 3.39E-05 5.92E-03 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 3.82E-05 0.00E+00 6.41E-05 0.00E+00 Output Flows and Waste Categories HWD 1.04E-07 7.15E-13 1.09E-08 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 8.05E-13 0.00E+00 1.29E-11 0.00E+00 NHWD 1.25E-02 2.16E-05 2.08E-01 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 2.44E-05 0.00E+00 1.54E+00 0.00E+00 HLRW 1.33E-06 8.45E-10 4.77E-07 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 9.52E-10 0.00E+00 6.39E-09 0.00E+00 ILLRW 1.11E-03 7.12E-07 4.00E-04 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 8.02E-07 0.00E+00 5.72E-06 0.00E+00 RWD 1.11E-03 7.13E-07 4.00E-04 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 8.03E-07 0.00E+00 5.73E-06 0.00E+00 CRU 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 MR 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 MER 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 EEE 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 EET 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00 0.00E+00

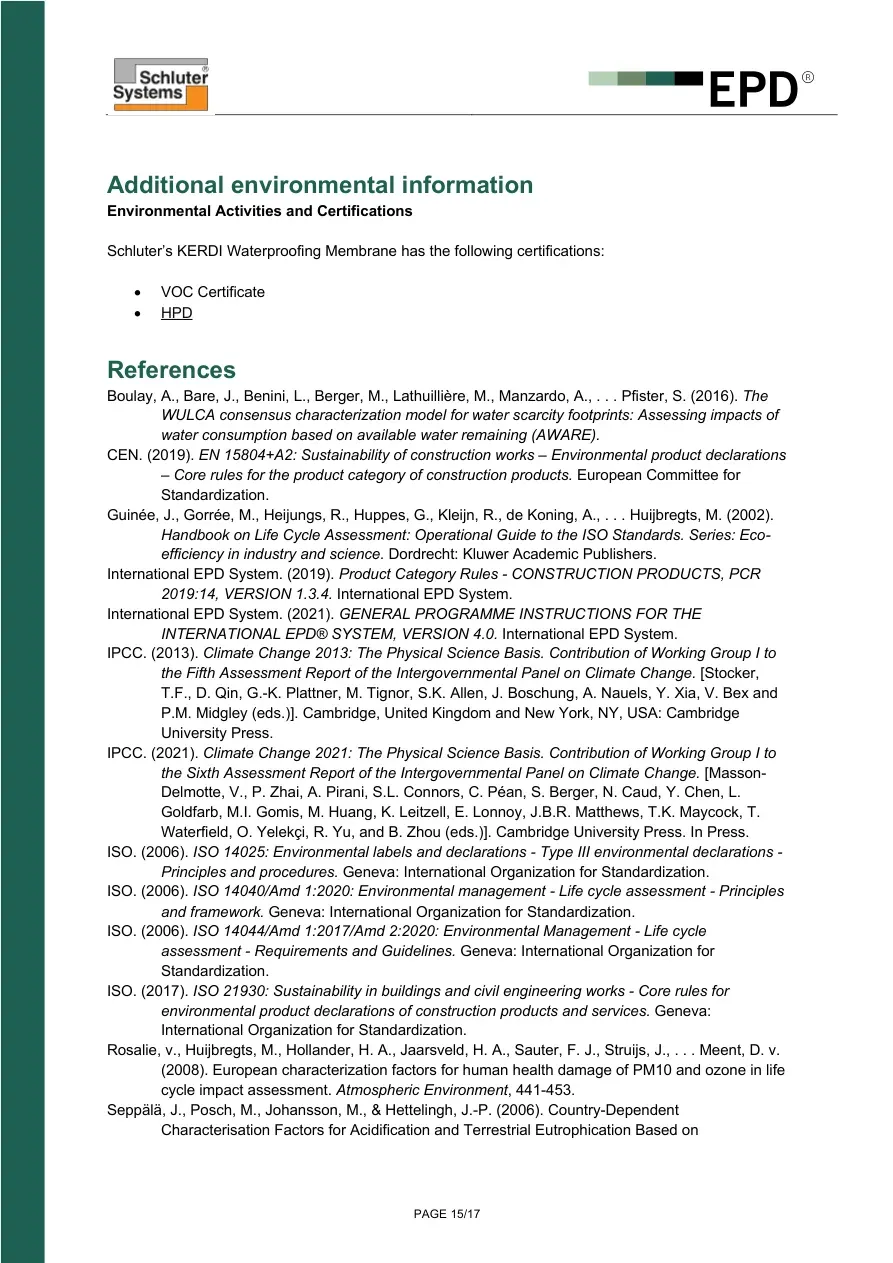

PAGE 15/17 Additional environmental information Environmental Activities and Certifications Schluter’s KERDI Waterproofing Membrane has the following certifications: • VOC Certificate • HPD References Boulay, A., Bare, J., Benini, L., Berger, M., Lathuillière, M., Manzardo, A., . . . Pfister, S. (2016). The WULCA consensus characterization model for water scarcity footprints: Assessing impacts of water consumption based on available water remaining (AWARE). CEN. (2019). EN 15804+A2: Sustainability of construction works – Environmental product declarations – Core rules for the product category of construction products. European Committee for Standardization. Guinée, J., Gorrée, M., Heijungs, R., Huppes, G., Kleijn, R., de Koning, A., . . . Huijbregts, M. (2002). Handbook on Life Cycle Assessment: Operational Guide to the ISO Standards. Series: Eco-efficiency in industry and science. Dordrecht: Kluwer Academic Publishers. International EPD System. (2019). Product Category Rules - CONSTRUCTION PRODUCTS, PCR 2019:14, VERSION 1.3.4. International EPD System. International EPD System. (2021). GENERAL PROGRAMME INSTRUCTIONS FOR THE INTERNATIONAL EPD® SYSTEM, VERSION 4.0. International EPD System. IPCC. (2013). Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change. [Stocker, T.F., D. Qin, G.-K. Plattner, M. Tignor, S.K. Allen, J. Boschung, A. Nauels, Y. Xia, V. Bex and P.M. Midgley (eds.)]. Cambridge, United Kingdom and New York, NY, USA: Cambridge University Press. IPCC. (2021). Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change. [Masson-Delmotte, V., P. Zhai, A. Pirani, S.L. Connors, C. Péan, S. Berger, N. Caud, Y. Chen, L. Goldfarb, M.I. Gomis, M. Huang, K. Leitzell, E. Lonnoy, J.B.R. Matthews, T.K. Maycock, T. Waterfield, O. Yelekçi, R. Yu, and B. Zhou (eds.)]. Cambridge University Press. In Press. ISO. (2006). ISO 14025: Environmental labels and declarations - Type III environmental declarations - Principles and procedures. Geneva: International Organization for Standardization. ISO. (2006). ISO 14040/Amd 1:2020: Environmental management - Life cycle assessment - Principles and framework. Geneva: International Organization for Standardization. ISO. (2006). ISO 14044/Amd 1:2017/Amd 2:2020: Environmental Management - Life cycle assessment - Requirements and Guidelines. Geneva: International Organization for Standardization. ISO. (2017). ISO 21930: Sustainability in buildings and civil engineering works - Core rules for environmental product declarations of construction products and services. Geneva: International Organization for Standardization. Rosalie, v., Huijbregts, M., Hollander, H. A., Jaarsveld, H. A., Sauter, F. J., Struijs, J., . . . Meent, D. v. (2008). European characterization factors for human health damage of PM10 and ozone in life cycle impact assessment. Atmospheric Environment, 441-453. Seppälä, J., Posch, M., Johansson, M., & Hettelingh, J.-P. (2006). Country-Dependent Characterisation Factors for Acidification and Terrestrial Eutrophication Based on

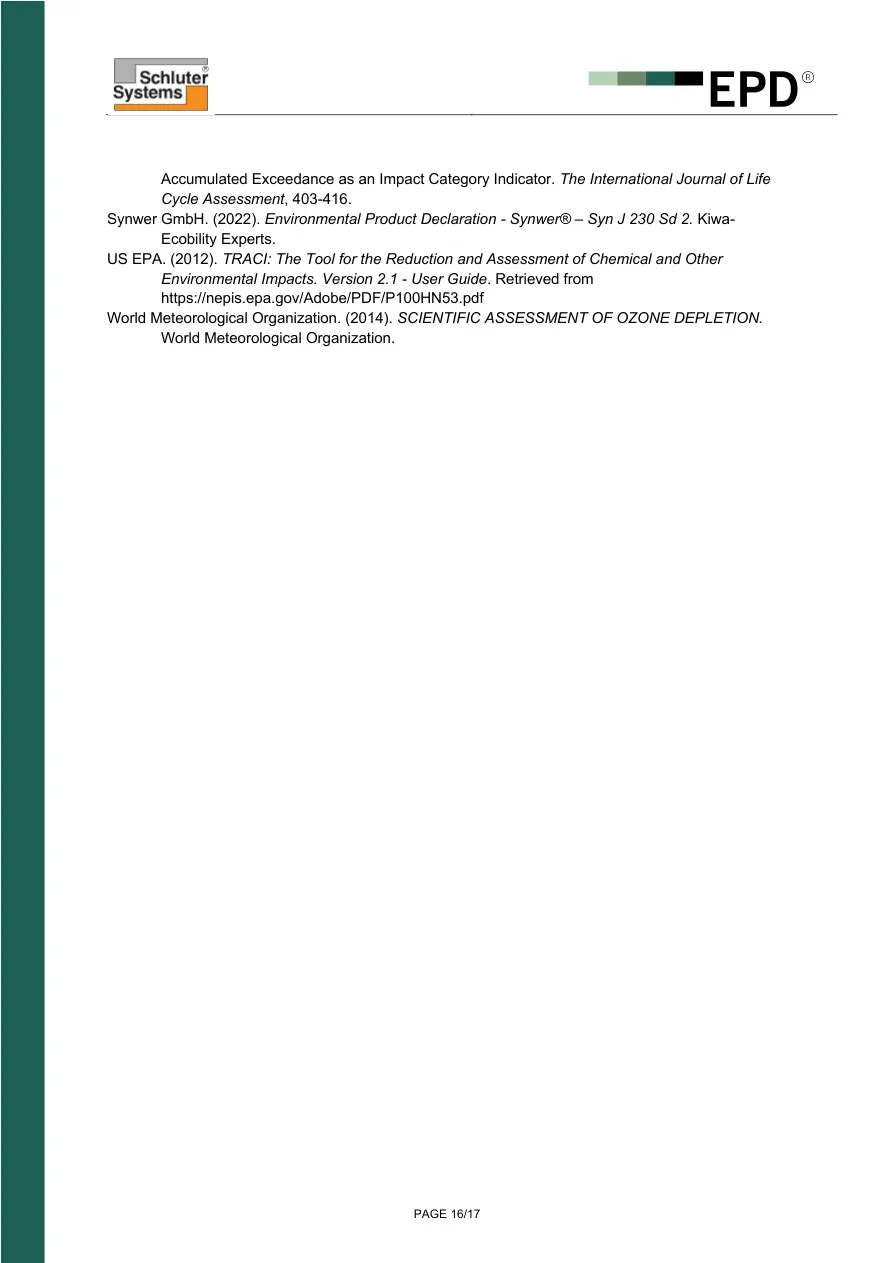

PAGE 16/17 Accumulated Exceedance as an Impact Category Indicator. The International Journal of Life Cycle Assessment, 403-416. Synwer GmbH. (2022). Environmental Product Declaration - Synwer® – Syn J 230 Sd 2. Kiwa-Ecobility Experts. US EPA. (2012). TRACI: The Tool for the Reduction and Assessment of Chemical and Other Environmental Impacts. Version 2.1 - User Guide. Retrieved from https://nepis.epa.gov/Adobe/PDF/P100HN53.pdf World Meteorological Organization. (2014). SCIENTIFIC ASSESSMENT OF OZONE DEPLETION. World Meteorological Organization.
